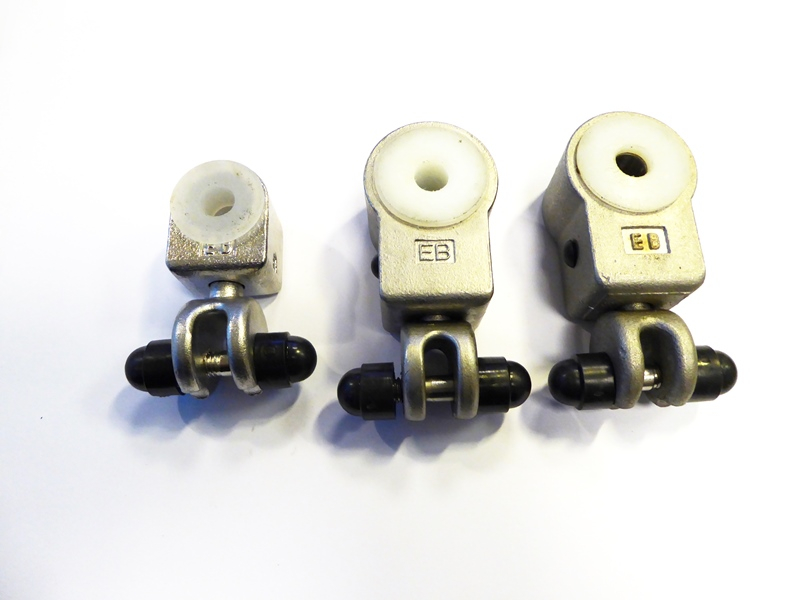

Swing joint only bearing part
Swing joint only bearing part
without bolt
Article No.: 200635.515L
Your current choice:
casted stainless steel standard
Description
Dimensions
- Available versions: casted stainless steel or stainless steel stamped and welded
- casted stainless steel always with swivel, available with nylon bush or needle bearing
- Stainless steel always with needle bearing, available with or without swivel

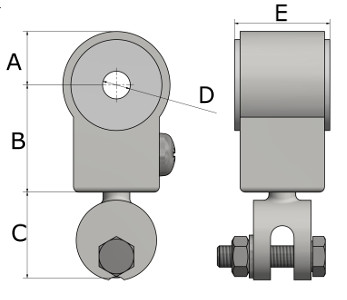

| Typ | A | B | C | D | E |
| 200636.L | 15 mm | 23 mm | 25 mm | 9 mm | 25 mm |
| 200635.L | 15 mm | 20 mm | 35 mm | 9 mm | 25 mm |
| 200635.515L | 15 mm | 22 mm | 35 mm | 10 mm | 30 mm |
| 200635.115L | 20 mm | 40 mm | 30 mm | 10 mm | 35 mm |
| 200635.315L | 20 mm | 40 mm | 30 mm | 10 mm | 35 mm |
